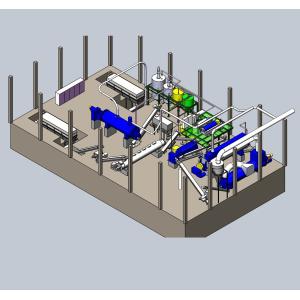

Rendering plant

The rendering plant is a complete plant including all the machinery and equipment required for the animal poultry production line. The rendering Plant we designed is very compact with reasonable space.

Main components of the plant i.e. the hopper, screw conveyor, the tubular preheater heated by waste heat from the drier,the screw cooker, the twin screw press and the disc drier.

Jiangsu Stord Works Ltd. is located in national machinery industrial park, which is at the coast of Taihu Lake, Fangqiao Town, Yixing City, Jiangsu Province. Our company has more than 180 employees, covers an area of 25000m2 and has more than 70 sets of various manufacturing and testing equipment. The maximum lifting capacity is 100T. The bending capacity for the thickest plate is up to 120mm. Our company introduced the domestic and foreign advanced equipment and technology, is committed to develop and manufacture complete sets of equipment for various animal protein, comprehensive utilization and recovery of solid and liquid wastes, pressure vessel.

Our company mainly designs and manufactures drying equipment, pressing equipment, evaporation and concentration equipment, Crushing & broken equipment, Screw conveying & mixing equipment, Non-standard pressure vessel , turnkey project for fish meal and fish oil, Meat and bone meal plant, Feather meal plant, sludge drying plant and EPC.

Belt conveyor

It's mainly used for conveying materials, especially for whole chicken,whole duck and etc.

Crusher

There are single shaft, double shaft, multiple shaft crusher to choose from, which depends on your raw material.
It's used for cutting large material into small pieces and crushing the frozen material into evenly right size, it is for better conveying and cooking.

Screw Conveyor

The screw conveyor is very essential in the whole process. It can be made from carbon steel or stainless steel. It's mainly used for conveying materials, which is easy to clean and with long service life.

Material Silo

The volume of the silo isdepend s on your required capacity. It is made of 6mm carbon steel plates. The top and bottom are reinforced by carbon steel angle iron.

Cooker

In this process, there are batch cooker and high temperature high pressure continuous cooker to choose from.
The Batch cooker is used for cooking the materials by batch and to ensure the quality of products.
The cooker has two parts: the rotor and the jacket.

Screw Press

The screw press plays a decisive role in the whole process. It uses a set of variable diameter shafts and variable pitch screws, running in opposite direction and squeezing out the liquid through the filtering plates.

Dryer

There are multilayer of coiled tube inside the cylinder, which aim at increasing heating area and drying the material to achieve the good drying effect.

Hammer Mill

It is used for grinding material . It is with compact structure, simple operation, smooth operation and durable.

Meal Cooler

The cooler mainly cools the materials from the dryer to the room temperature, and then goes to the packing system. It lowers the temperature of the material by contacting the cold wind. The cold wind will be extracted through the bag dust filter.
